100kpa pressure pressure diaphragm pump 12V dc vacuum motor
Product Description
12V dc vacuum motor's parameter and features
| Model | DW5012-1005-3700 |
| Size(mm) | 50*70*100 |
| Voltage(V/DC) | 6V/9V/12V/24V |
| Power(W) | 7 |
| Free Flow(L/M) | 10 |
| Max. vacuum(Kpa) | -60 |
| Max.pressure(Kpa) | 100 |
| Weight | 310 |
Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
Pump Size:50*70*100mm
Pump Weight:310g;
Outlet:OD 6mm, silicone hose suggestion:ID 5mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resisitance.
Piston pump has the following advantages:
compact structure, maintenance free
oil free,low power consumption, corrosion resistance
high pressure,high flow, low noise
long life and other characteristics
12V dc vacuum motor's application
Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.
12V dc vacuum motor's packing and shipping
Shipment
1. We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.
2. And we will help choose the most cost-effective way for you according to your requirement.
3. The tracking number will be available the next day after shipment,then you can check your goods is on the way.
12V dc vacuum motor's picture
Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.
Its flow can deliver up to 5 l/min and 20L/M.
Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
You can choose pump according to our model.
In addition,it can be mounted in any position.

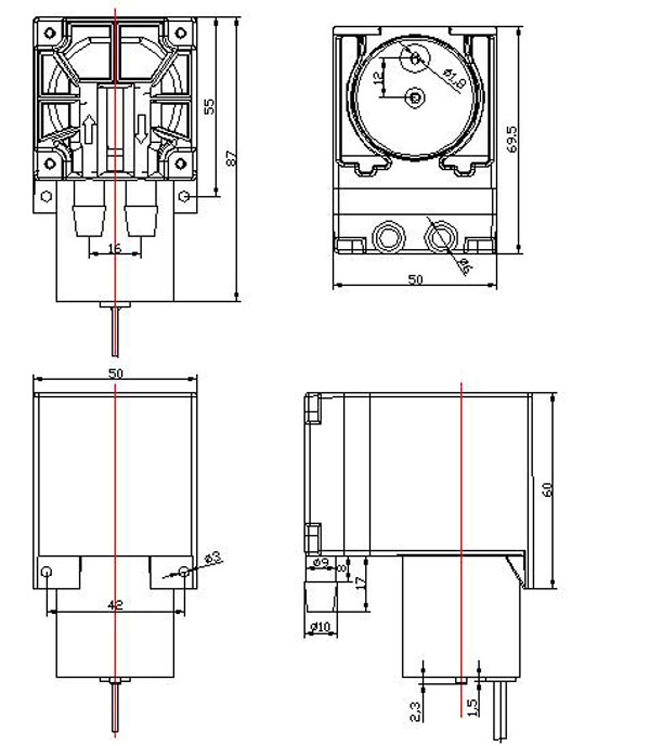

12V dc vacuum motor's demension
Unlabeled tolerance is ± 0.1mm.

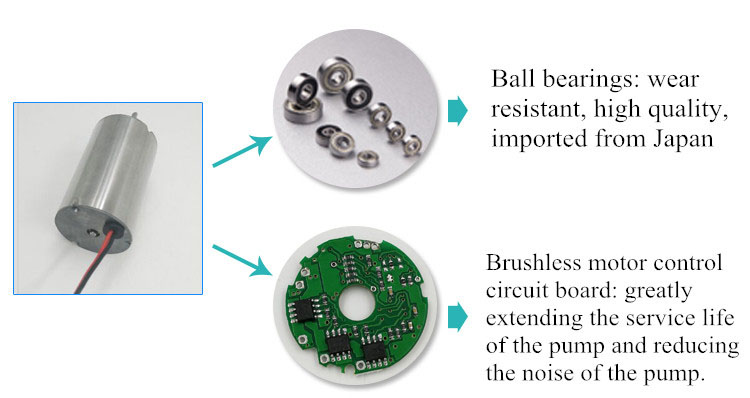

12V dc vacuum motor's details show
Certifications
All products of our company have independent intellectual property rights and patents.
We have all kinds of certification, such as Rohs,CE and Reach.
